Viewing fueling system components up-close can be difficult at a fuel site.
Many parts are not easily accessed, and they can become unrecognizable after years of hard work in the field.
Touch a part to learn what it is, view it at 360 degrees and learn about the part's specifications.

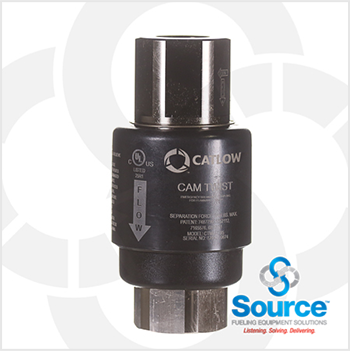

Allows maintenance and inspection while in service, eliminates need for "Remove By" date, and easy realignment and reconnection of the two breakaway halves after a drive off.
| Mfr / Trade Name: | Catlow | Category - Main: | Dispenser Equipment |
|---|---|---|---|
| Hanging Hardware: | Breakaway | Type: | Conventional |
| Inlet: | 3/4 Inch |
Incorporates two set screws that are tightened after torquing the adapter.
| Mfr / Trade Name: | Emco Wheaton Retail | Category - Main: | Aboveground Storage Tank Equipment |
|---|---|---|---|
| Category - Main: | Underground Storage Tank Equipment | Caps & Adapters: | Swivel Vapor Adapter |
| Type: | Top Seal | Composition: | Brass |
| Size: | 4 inch |
Fusible link closes poppet in the event of a fire, Main poppet seals in valve body, preventing accidents when replacing adapters.
| Mfr / Trade Name: | Franklin Fueling Systems | Category - Main: | Underground Storage Tank Equipment |
|---|---|---|---|
| Valves, Drop Tubes & Vents: | Shear Valve | Type: | Double Poppet |
| Size: | 1-1/2 Inch Female | Inlet: | 1-1/2 Inch |

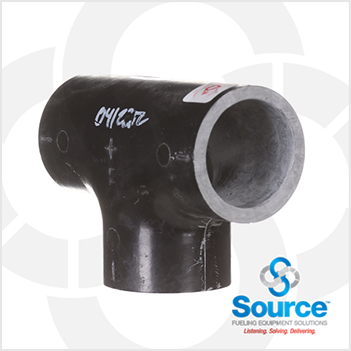

Underwriters Laboratories Standard UL 971 approved - near zero permeation.
| Mfr / Trade Name: | Ameron | Category - Main: | Piping |
|---|---|---|---|
| Fiberglass: | Primary Fitting | Type: | Tee |
| Size: | 2 inch |
| Mfr / Trade Name: | Jomar | Category - Main: | Commercial & Industrial Equipment |
|---|
Lightweight aluminum body - easy to handle
| Mfr / Trade Name: | OPW Fueling Components | Category - Main: | Dispenser Equipment |
|---|---|---|---|
| Hanging Hardware: | Swivel | Type: | Conventional |
| Inlet: | 3/4 inch |

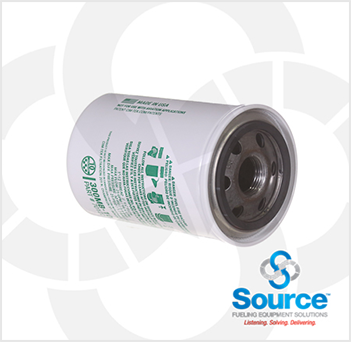

Advanced Water and Phase Separation Detection material between 2 Microglass layers restricts flow to notifiy operator that action is needed. Proprietary Microglass-Cellulose hybrid outer pleat pack.
| Mfr / Trade Name: | Cimtek | Category - Main: | Dispenser Equipment |
|---|---|---|---|
| Dispenser Maintenance: | Filters | Type: | Particulate Removal And Water/ Phase Separation Detecting |
| Size: | 3/4 inch | Micron Size | 10 Micron |

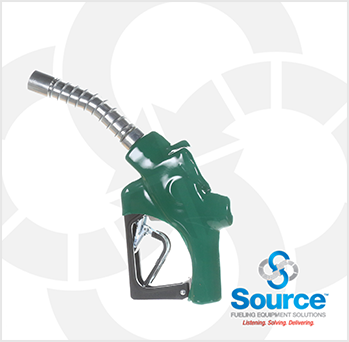

Pressure Activated automatic nozzle shuts off when the tank is full, the pump shuts off, lever is opened before the pump is turned on, or the leak detector has not completed a test cycle.
| Mfr / Trade Name: | Husky | Category - Main: | Dispenser Equipment |
|---|---|---|---|
| Hanging Hardware: | Nozzle | Type: | High Volume Conventional Pre-Pay |
| Fuel Type: | Diesel | Inlet: | 1 Inch |
| Color: | Green |
